Ultrasonic flow sensor IFS

Accurate, hygienic and contactless flow measurement.

Product quality and process stability at a highest level.

This is what makes the IFS ultrasonic flow sensor so convincing.
The IFS ultrasonic flow sensor measures flow precisely and thus ensures exact metering in the application.

1 Accurate
2 Hygienic
3 Contactless

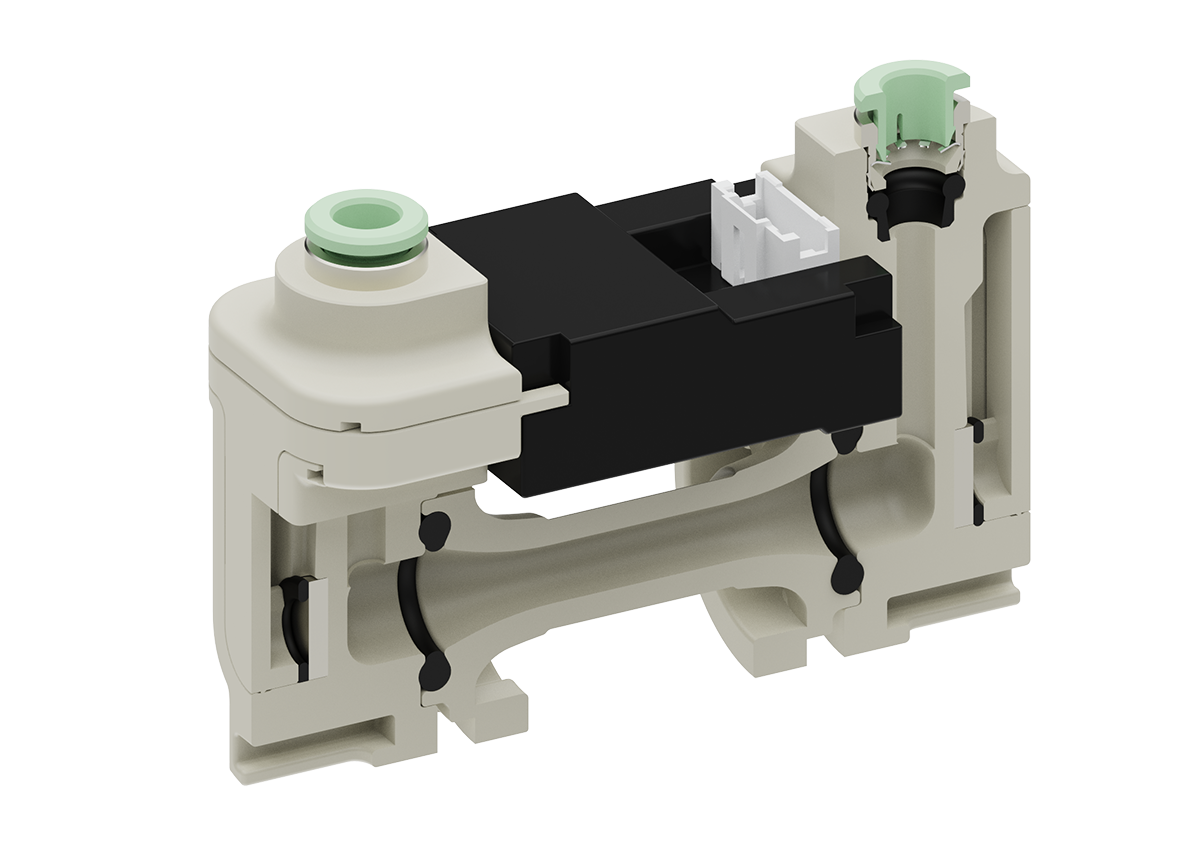

Ultrasonic flow sensor IFS

AVS Römer push-in connector with patented hyperfit® technology
Evaluation electronics for measurement evaluation in real time
Ultrasonic sensors for contactless measurement

The advantages

Hygienic design

Contactless measurement
Dead space optimized design
Patented hyperfit® sealing concept

Fast and precise measurement

Powerful processor technology
Measurement evaluation in real time

Top performance

Free pipe cross-section enables full flow
Precise measurement due to integrated temperature compensation

Wide range of applications

Water
Milk
Syrup
Others on request

Integration options

Various output signals:

Analog: 0-5 VDC (opt. pulse)
Digital: Modbus I²C (incl. interface description)

Tailored to your requirements

Standard option: AVS Römer push-in connector in sizes 4, 6 and 8mm
Customized solutions on request

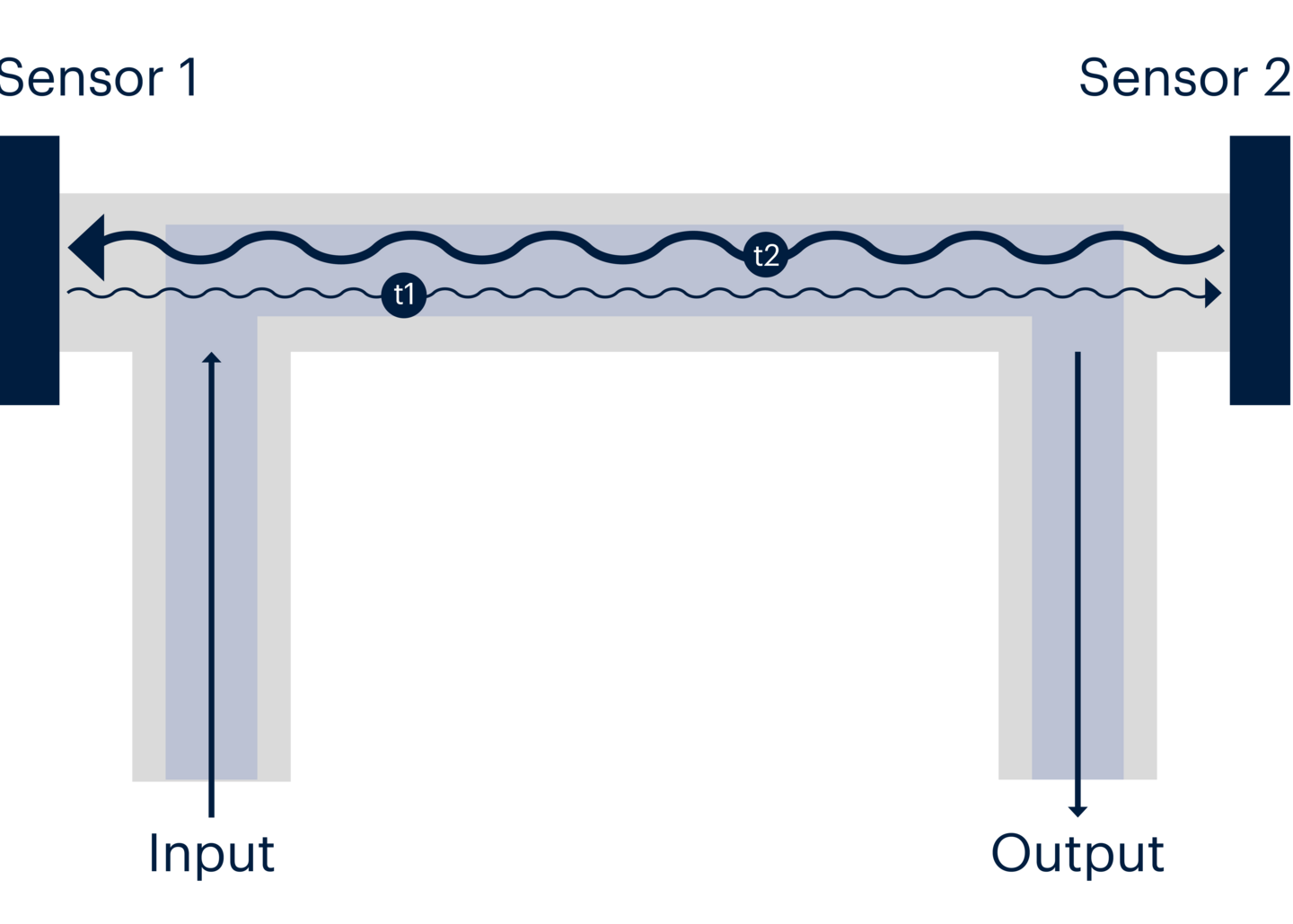

Functional principle

The ultrasonic flow measurement is performed according to the flow time difference method:

v_m= (c² /2 • L) • (1/t₁ - 1/t₂)

v_m = mean flow velocity
c = sound velocity
L = length of the measuring distance between the sensors
t₁ = time from sensor 1 to sensor 2
t₂= me from sensor 2 to sensor 1

The mean flow velocity and the flow cross-section A give the flow rate Q:

Q = v_m • A
