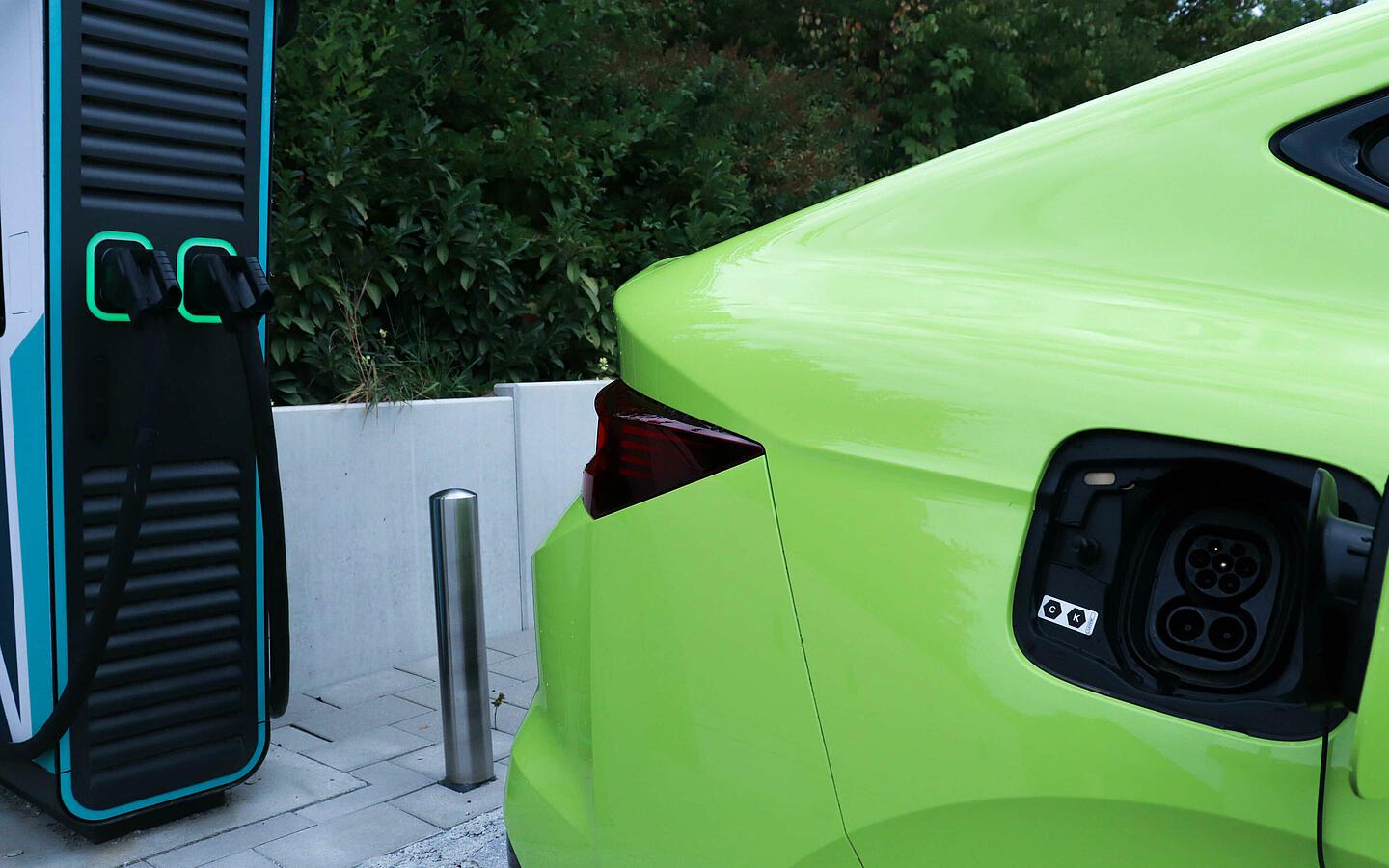

HPC charging stations

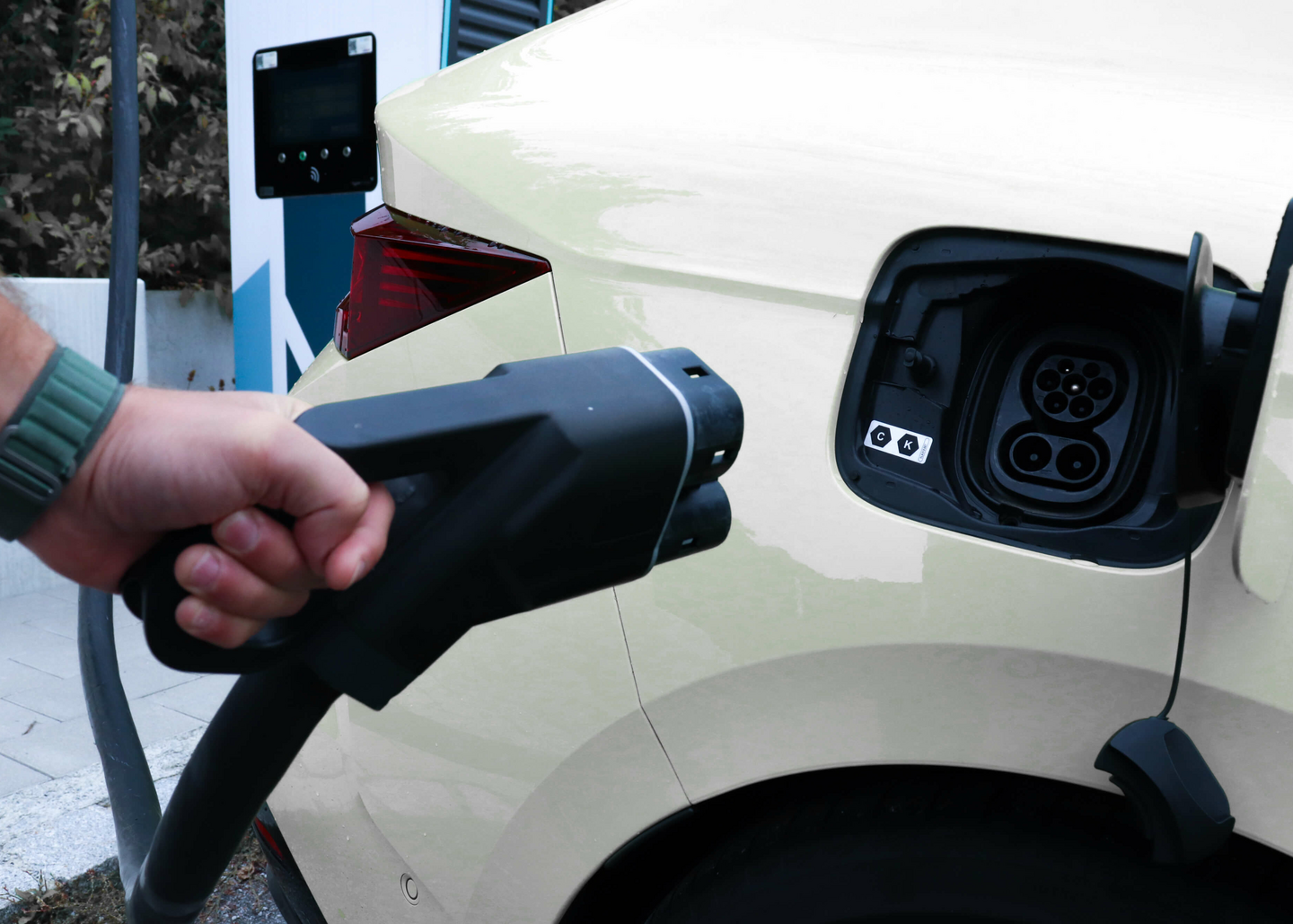

HPC charging stations are the latest generation of charging technology and the future of electromobility.
The reason: the enormous reduction in charging time.

The new generation of charging technology

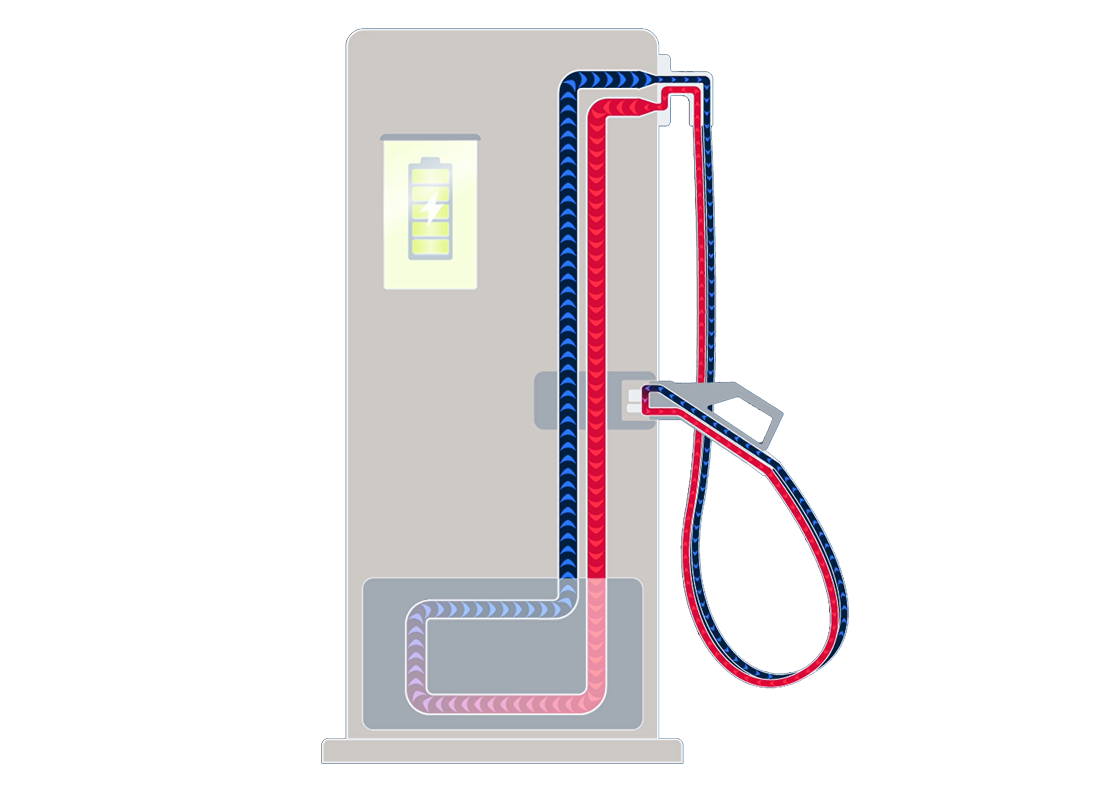

HPC technology revolutionizes fast charging technology with significantly higher charging power. But more charging power also means more required cooling power. The solution: liquid cooling with water-glycol or insulating oil as the cooling liquid.

The challenges

Extreme temperature fluctuations
Ambient and media temperatures
Highly aggressive mediums
With different chemical properties
Given installation space
The smaller the better
Durability and reliability
For safe and economical tank infrastructure without unplanned maintenance and downtime

Our solution

The demands of HPC charging station technology on the required components are high: given installation space, highly fluctuating ambient and medium temperatures, aggressive media and durability.

Our quality products meet the high requirements and ensure maximum safety and reliability in daily operation.

Maximum flexibility

Adaptation of components to installation situation and specific requirements through variety of standard products and variants or customer-specific solutions.

Compact design

Intelligent product design with optimized inner structure or integrable components for minimum space requirements in the application.

Excellent chemical and thermal resistance

Fulfillment of the highest requirements through variety of materials and sealing materials in the portfolio, including high-performance plastics.

Total reliability

By choosing the right materials in combination with inspections and laboratory tests for the highest quality standards.

AVS Römer product highlights

Fitting technology

Simple, fast and safe connection
Long service life due to use of high-performance materials
High chemical and thermal resistance at extreme ambient and medium temperatures and aggressive medium
High flow rate with compact design
Absolute tightness and leakage safety due to 100 % testing

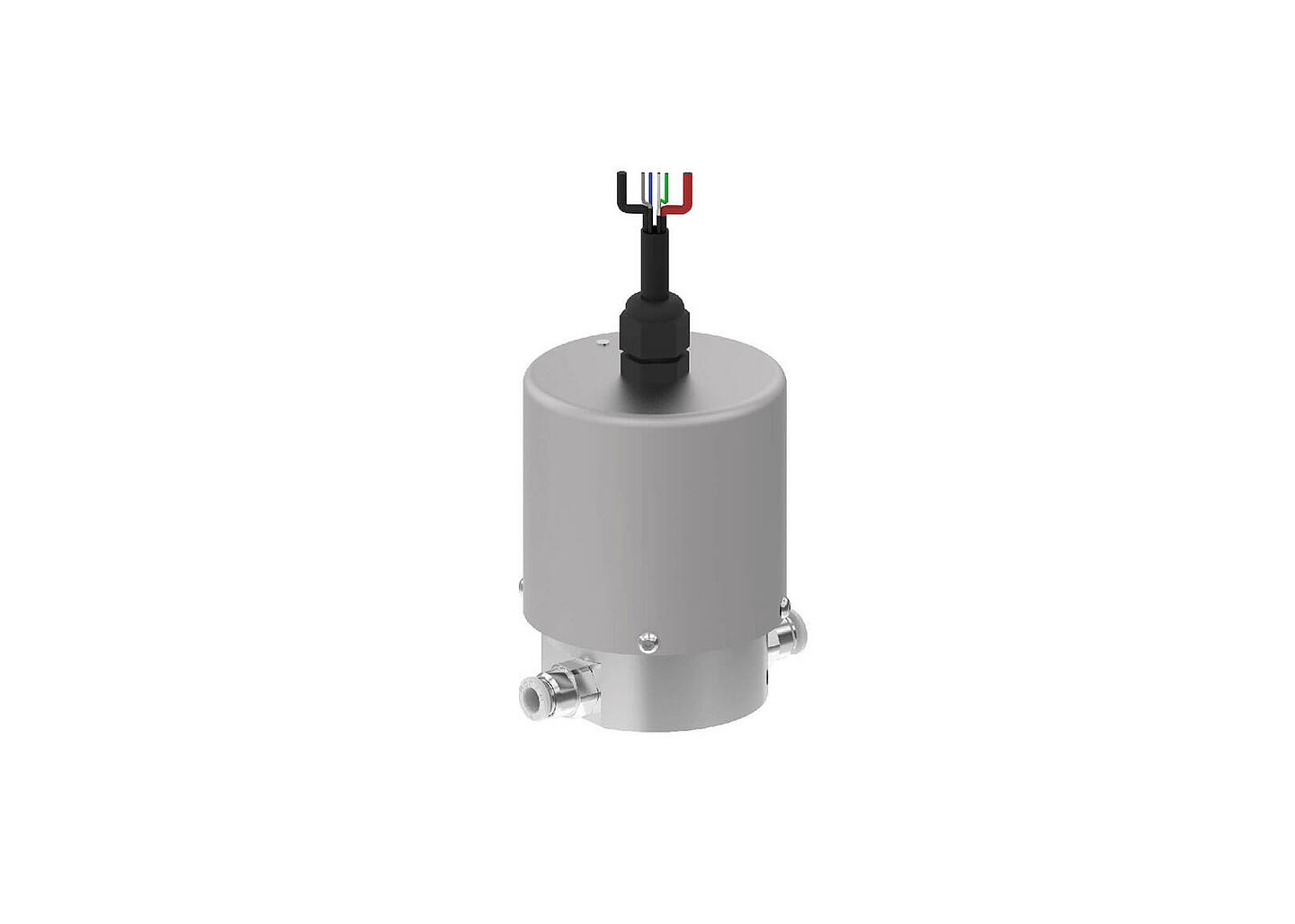

AVS Römer smartflow external gear pump

Precise delivery of cooling media
Very small size for maximum space savings in the charging station
Individual adaptation options, including flange version or drilling pattern
Integrated temperature shut-off prevents overheating
Suitable for highly viscous cooling medium
Pulsation-free and high metering accuracy

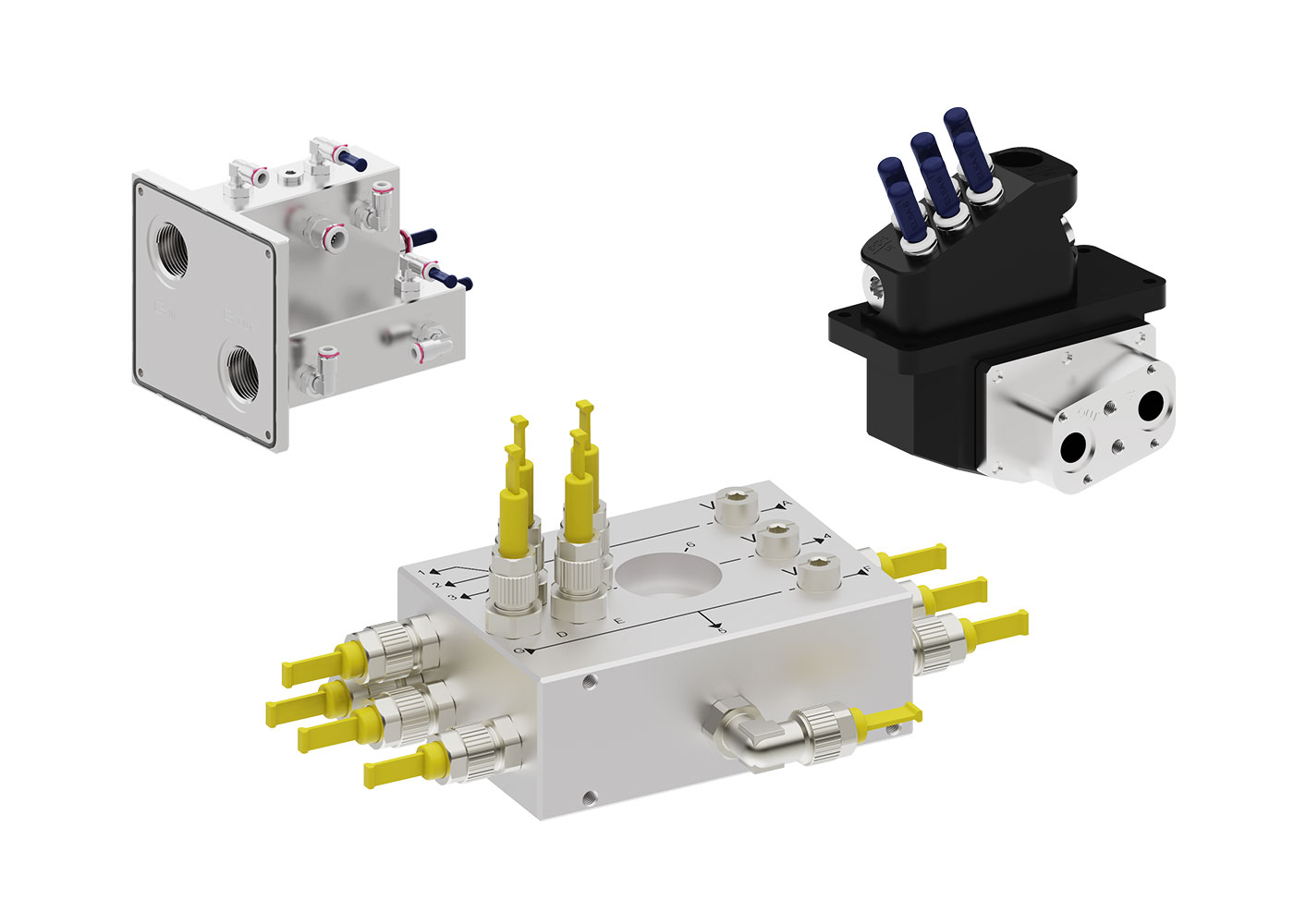

Distributor

Targeted and precise supply, distribution and control of coolant flow at high temperatures
Plug & Play simplifies professional installation
Compact and multifunctional – combination and integration of numerous functions in a minimum of space
Reduction of components, sealing points and assembly effort
Excellent chemical and thermal resistance
Customized implementation with a wide range of materials

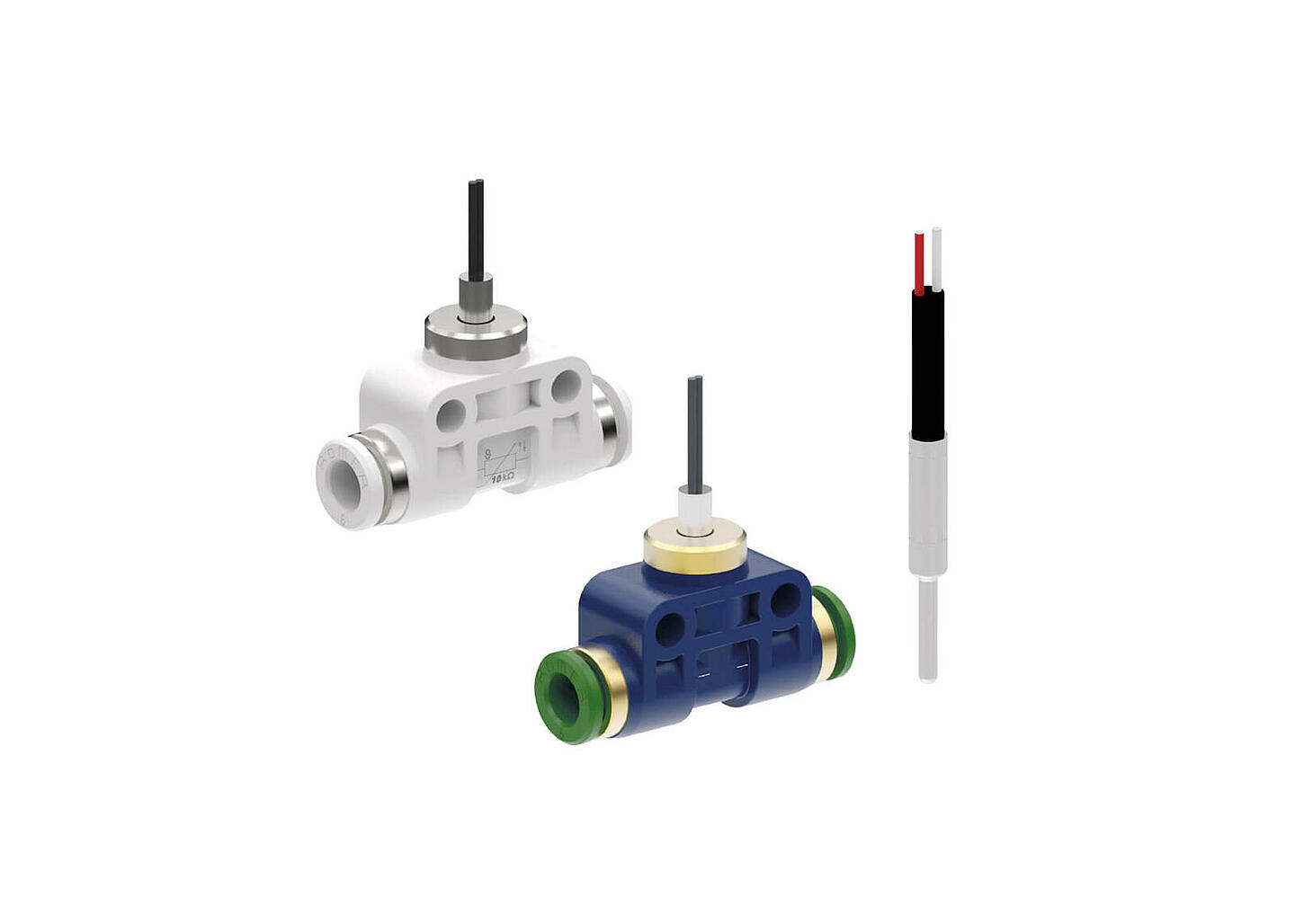

Sensor technology

Safe monitoring of temperatures and pressure to protect the overall system
Fast, precise and reliable measurement of temperature and pressure
Wide range of variants – can also be integrated for maximum space savings
High chemical and thermal resistance to extreme ambient and medium temperatures and aggressive medium
Compact design allows space-saving integration in hose routing
