The perfect connection

The dead space free AVS Römer push-in connector and the high-performance plastic PPSU


The dead space free push-in connector with innovative sealing concept

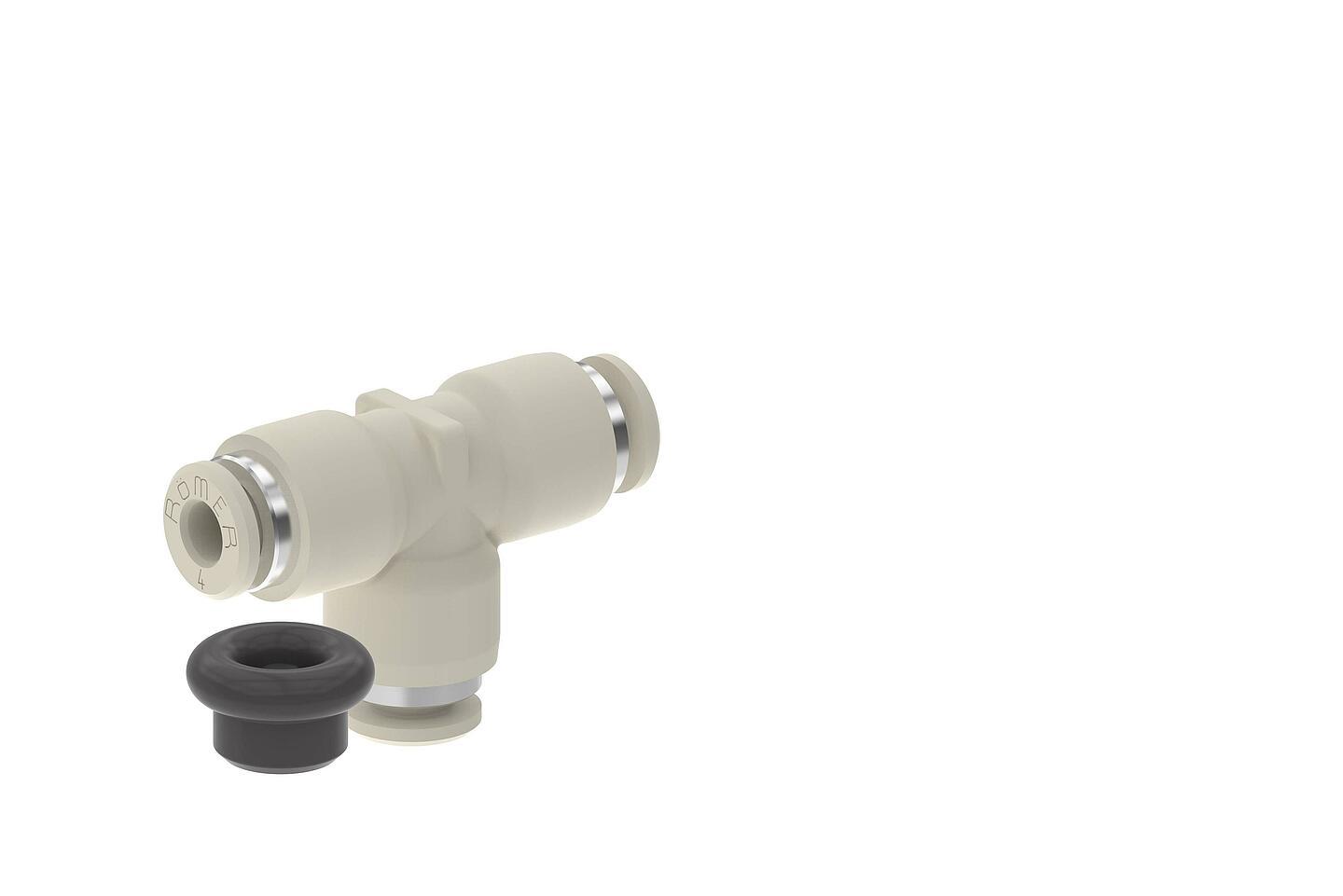

Absolute hygiene and highest performance – this is what makes the AVS Römer hyperfit convincing. The innovative sealing concept without dead space enables fast, simple and complete cleaning in place of the push-in connector. This makes the hyperfit perfect for transferring hygiene-critical medium.

  • 1 Dead space free

  • 2 Safe

  • 3 Efficient

  • 4 compatible

Absolute hygiene and highest performance

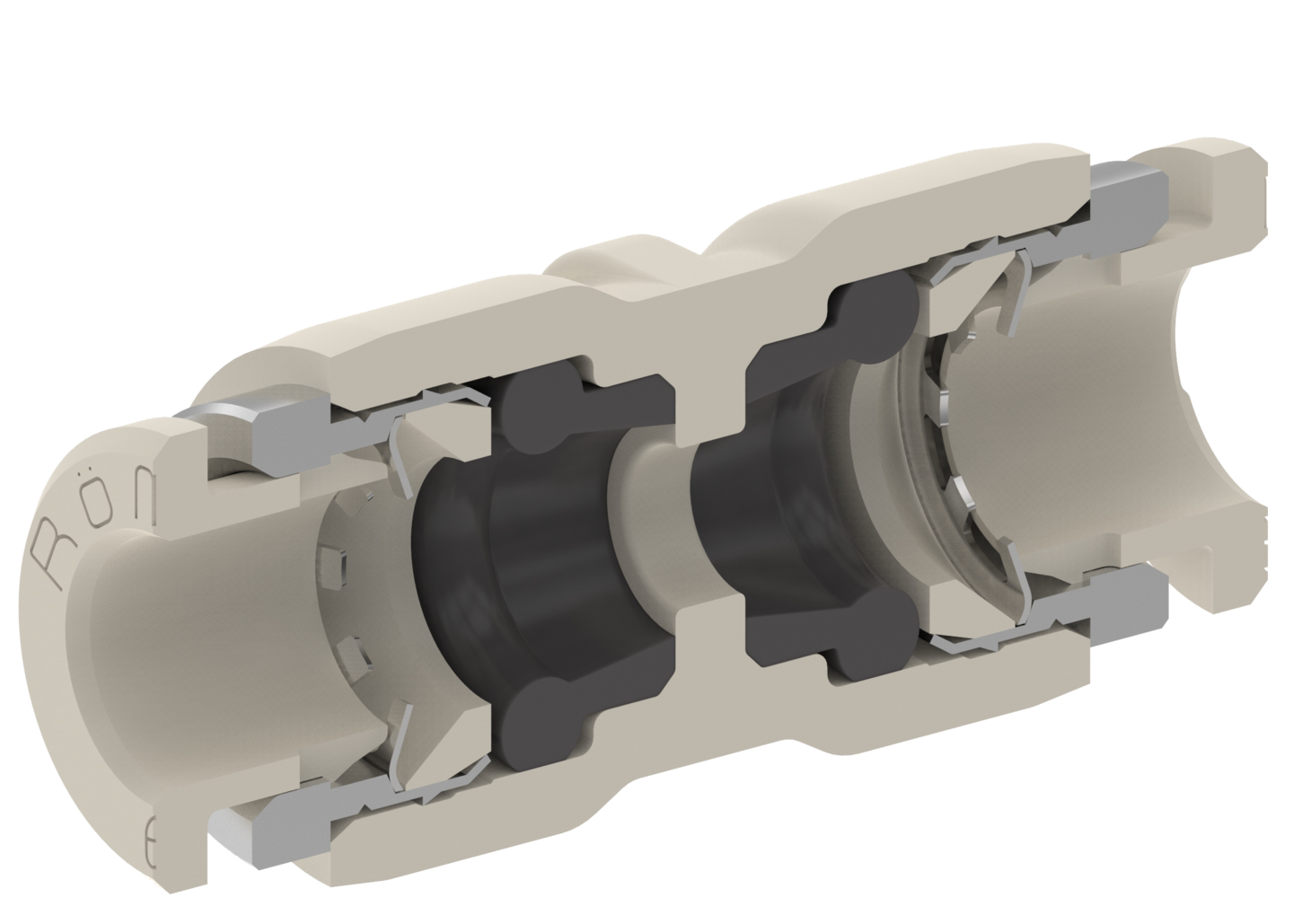

The patent-pending molded seal replaces the previous O-ring as a sealing element. The tube guide is integrated directly into the molded seal. Medium accumulation between the tube stop and the O-ring is thus prevented by the new dead space free concept.


The advantages

Dead space free

Suitable for CIP. The seal concept without dead space prevents the accumulation of medium and microbiological growth.

Ultimate hygiene

Easy to clean and rinse – the hygienic and dead space free design allows quick medium change without any residues.

Fully compatible

The hyperfit extends the AVS Römer PPSU program and is fully compatible with the entire AVS Römer portfolio.

Maximum performance

Temperatures up to 140 °C, pressures up to 20 bar. With its high mechanical strength, the hyperfit is suitable for many demanding applications.

Safe and efficient

The compact design provides a safe solution at full flow without cross-sectional restriction.

Tailored to your requirements

With variants of the standard products or custom solutions, we guarantee the perfect solution for your application.

PPSU expertise for the requirements in Food & Beverage

With our high in-house production depth, we are specialists in the processing of high-performance plastics such as PPSU. In doing so, we rely on high-quality raw materials and avoid recyclate. Whether high temperature ranges of 0-140° C or pressure ranges up to 20 bar, AVS Römer hyperfit made of PPSU scores with absolute steam resistance, high mechanical strength and long service life all along the line.



The perfect solution for your application

Food & Beverage

Life Science

Life Science

Laboratory technology

Food & Beverage

Coffee machines

Food & Beverage

Beverage vending machines

Food & Beverage

Dispensing systems


Additional information


  • Sizes: 4 mm, 6 mm, 8 mm
  • Geometries: straight, elbow, t-shape, more on request
  • Temperature range: 0 °C up to +140 °C
  • Pressure range: up to 20 bar
  • Materials in contact with medium: PPSU, FKM

Request product data sheet
